AS18VBLN

ข้อมูลจำเพาะทั้งหมด

Features	Refrigerant Type	N/A
	Smart Inverter	N/A
	Micro Plasma Ion	Yes
	Good´sleep Mode	Yes
	Compressor Type	ROTARY

Energy Efficiency	EER (Cooling, btu/W)	11.13
	EER (Cooling, W/W)	N/A
	COP (Heating, W/W)	N/A

Operating Mode	Sleep Mode	N/A
	Timer	N/A
	Energy Saving Mode	N/A
	Auto Restart	N/A
	Digital i Plus	N/A
	Dehumidification	N/A
	Turbo Mode	N/A
	Auto Changeover	N/A

Convenience	Air Flow Control Steps (Cool/Fan)	N/A
	Remote Controller	Yes
	Surrounding Air Control	N/A
	Auto Wind	N/A
	Air Direction Control (Up/Down)	N/A
	Air Direction Control (Left/Right)	N/A
	Auto Grille	N/A
	Auto Clean (slef cleaning)	N/A

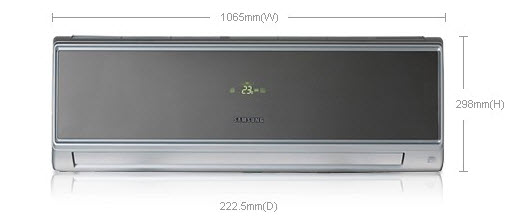

Dimensions	Net Dimension (W*H*D, mm)	1065 x 298 x 222.5mm

weight	Net weight (Indoor, kg)	N/A
	Net weight (Outdoor, kg)	N/A
	Shipping Weight (Indor, kg)	14kg
	Shipping Weight (Outdor, kg)	44.5kg

Performance	Capacity (Cooling, Btu/hr)	18814.11
	Capacity (Cooling, Cal/hr)	N/A
	Capacity (Cooling, kW)	N/A
	Capacity (Heating, Btu/hr)	N/A
	Capacity (Heating, Cal/hr)	N/A
	Capacity (Heating, kW)	N/A
	Moisture removal (l/hr)	N/A
	Air circulation (Max, M3/min)	N/A
	Noise Level (Indoor High/Low, dB)	N/A
	Noise Level (Outdoor High, dB)	N/A

Electrical Data	Power source (V/Hz/Φ)	220-240, 50/1
	Power consumption (Cooling, W)	1690.3 W
	Power consumption (Heating, W)	1690.3 W
	Operating Current (Cooling, A)	N/A
	Operating Current (Heating, A)	N/A

Loading Q´ty	W pipe (20/40ft/Jumbo)	N/A
	W/O pipe (20/40ft/Jumbo)	N/A

Techical Information	SVC Valve (Liquid, OD*L)	N/A
	SVC Valve (Gas, OD*L)	N/A
	Piping Length (STD, mm)	4mm
	Piping Length (Max, mm)	N/A
	Piping Height (Max, mm)	N/A
	Refrigerant (G)	800
	Add Refrigerant (g/m)	N/A

Silver Coated Health System	Silver Coated Filter	Yes
	Silver Coated Evaporator	Yes

Pure&Clean Air	Deodorizing Filter	Yes
	Pure Filter (HAF Filter)	N/A
	Catechin Filter	Yes
	Alergy Filter	N/A

Low Ambient	Cooling (℃)	N/A
	Heating (℃)	N/A
